DRV intelligent mineral sorting equipment, also known as color mineral dry sorter, color mineral sorter, color sorter. Driven by DRV intelligent mineral sorting system software, it obtains mineral industrial camera video images, comprehensively applies mineral density-related data and mineral image feature data to identify minerals, and controls the nozzle to complete the rapid and accurate sorting of minerals.
Equipment appearance

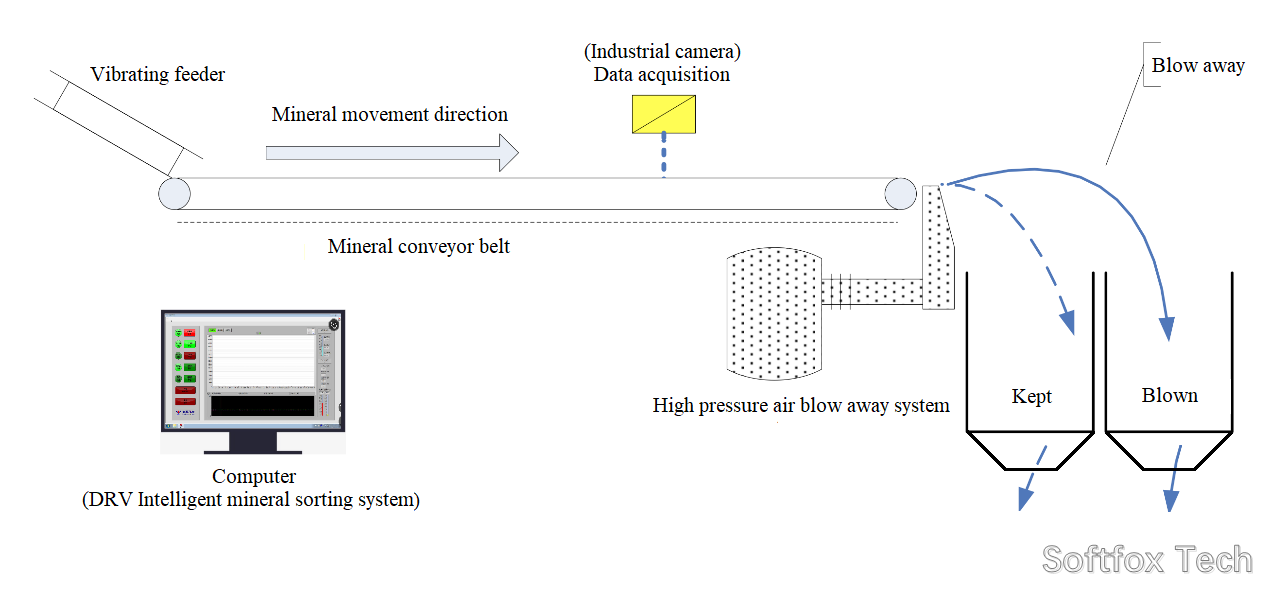

Sorting principle
Mineral camera images
Slow video of testing for selecting white kaolinite
Technical parameters of sorting machine
1. Sorting belt width 1000mm
2. Sorting belt speed 2.75m/s
3. Main machine geometry 10mx1.3mx2.2m
4. Main machine power 15kw
5. Auxiliary equipment power 85kw
6. Mineral processing particle size 20 - 350mm
7. Processing capacity 50 - 200 tons/hour
8. Transformer capacity 130kva
9. Three-phase AC voltage 380v/50hz
10. Separation of miscellaneous waste is greater than 95%
11. Waste contains less than 2% good material
