DRX intelligent mineral sorting equipment, also known as DRX intelligent dry sorting machine, X-ray mineral sorting machine, dry sorting machine. Driven by DRX intelligent mineral sorting system software, it obtains mineral X-ray video images, calculates data related to mineral density for mineral identification, and controls the nozzle to complete the rapid and accurate sorting of minerals.

Equipment appearance

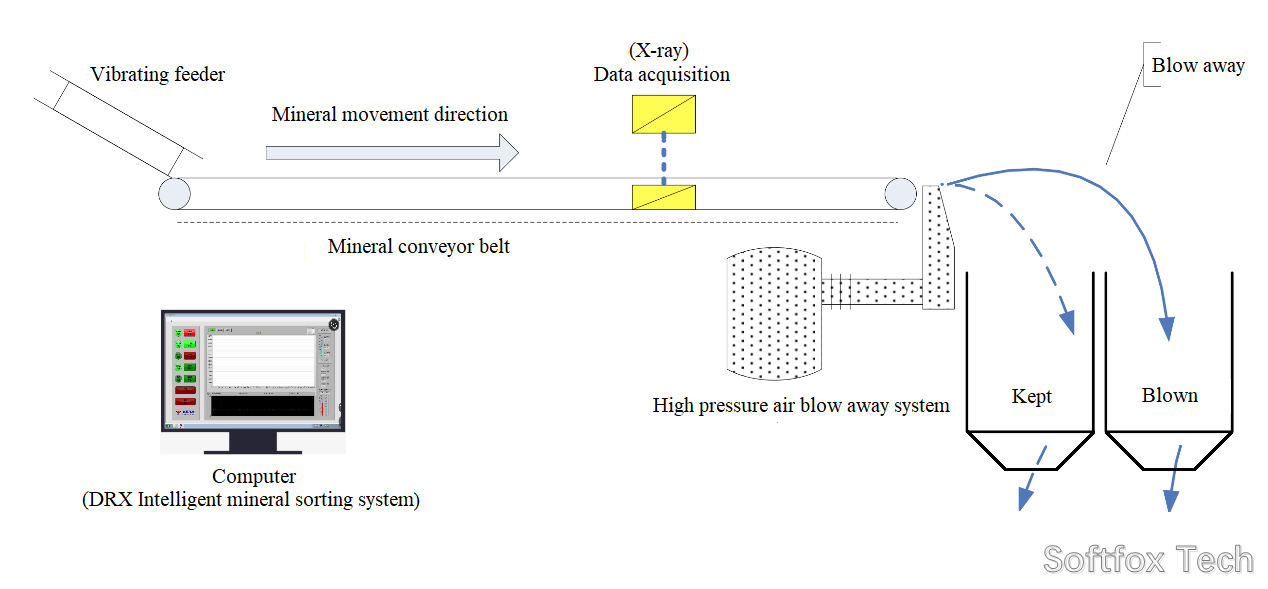

Sorting principle

Mineral X-ray images

Slow video of test for selecting coal ejecting gangue

Technical parameters of sorting machine

1. Sorting belt width 1000mm
2. Sorting belt speed 2.75m/s
3. Main machine geometry 10mx1.3mx2.2m
4. Main machine power 15kw
5. Auxiliary equipment power 85kw
6. Mineral processing particle size 20 - 350mm
7. Processing capacity 50 - 200 tons/hour
8. Transformer capacity 130kva
9. Three-phase AC voltage 380v/50hz
10. Separation of waste is greater than 95%
11. Waste contains less than 2% good material

DRV intelligent mineral sorting equipment, also known as color mineral dry sorter, color mineral sorter, color sorter. Driven by DRV intelligent mineral sorting system software, it obtains mineral industrial camera video images, comprehensively applies mineral density-related data and mineral image feature data to identify minerals, and controls the nozzle to complete the rapid and accurate sorting of minerals.

Equipment appearance

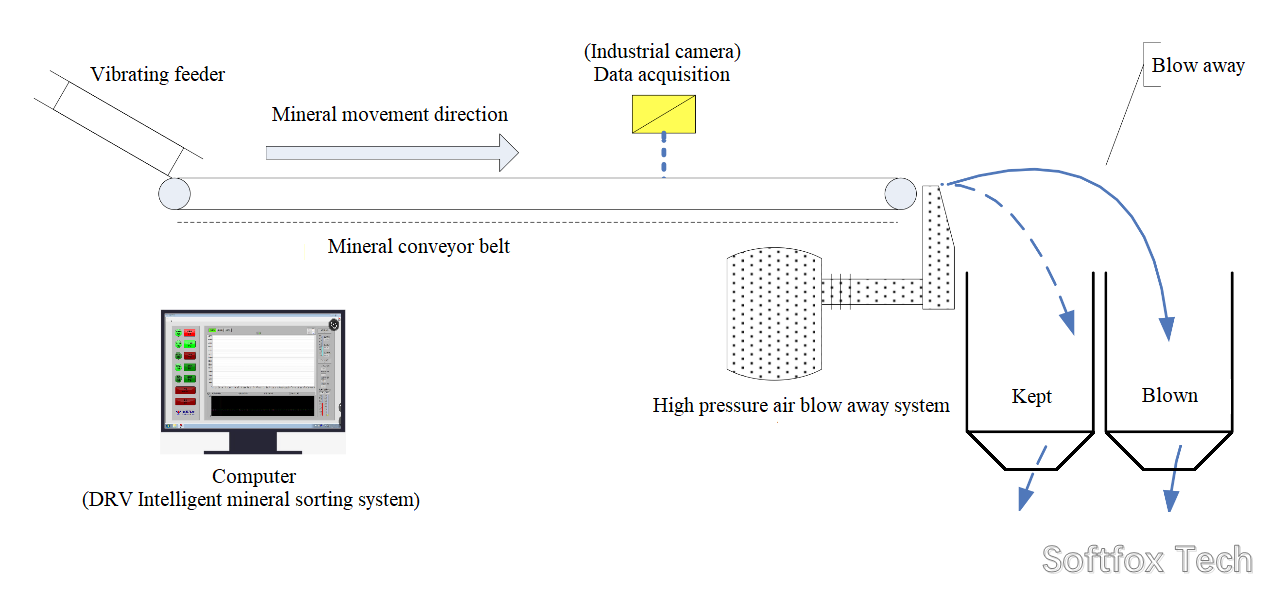

Sorting principle

Mineral camera images

Slow video of testing for selecting white kaolinite

Technical parameters of sorting machine

1. Sorting belt width 1000mm
2. Sorting belt speed 2.75m/s
3. Main machine geometry 10mx1.3mx2.2m
4. Main machine power 15kw
5. Auxiliary equipment power 85kw
6. Mineral processing particle size 20 - 350mm
7. Processing capacity 50 - 200 tons/hour
8. Transformer capacity 130kva
9. Three-phase AC voltage 380v/50hz
10. Separation of miscellaneous waste is greater than 95%
11. Waste contains less than 2% good material

DRXV intelligent mineral sorting equipment is also called X-ray + color mineral dry sorting machine, X-ray + color mineral sorting machine, dual source sorting machine, dual source dry sorting machine. Driven by DRXV intelligent mineral sorting system software, it is driven to obtain mineral X-ray images and industrial camera image video images, and comprehensively apply the data related to mineral density and mineral image feature data to identify minerals, and control the nozzle to complete the rapid and accurate sorting of minerals.

Equipment appearance

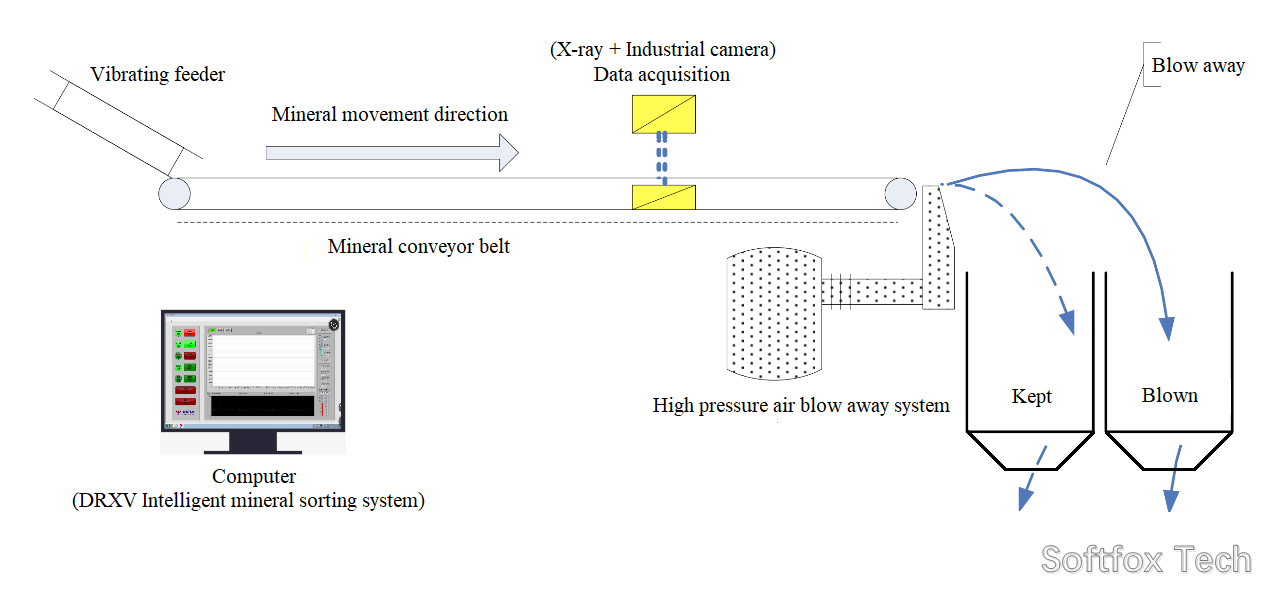

Sorting principle

Mineral X-ray and camera images

Slow video of testing for selecting white kaolinite

Technical parameters of sorting machine

1. Sorting belt width 1000mm
2. Sorting belt speed 2.75m/s
3. Main machine geometry 10mx1.3mx2.2m
4. Main machine power 15kw
5. Auxiliary equipment power 85kw
6. Mineral processing particle size 20 - 350mm
7. Processing capacity 50 - 200 tons/hour
8. Transformer capacity 130kva
9. Three-phase AC voltage 380v/50hz
10. Separation waste is greater than 98%
11. Waste contains less than 1% good material

DRX Intelligent Mineral Sorting System (DRXIMSS) software, also known as X-ray mineral sorting software, obtains mineral X-ray video images, calculates data related to mineral density for mineral identification, and controls the nozzle to complete mineral sorting.

DRXIMSS Main Interface

DRXIMSS Copyright registration certificate

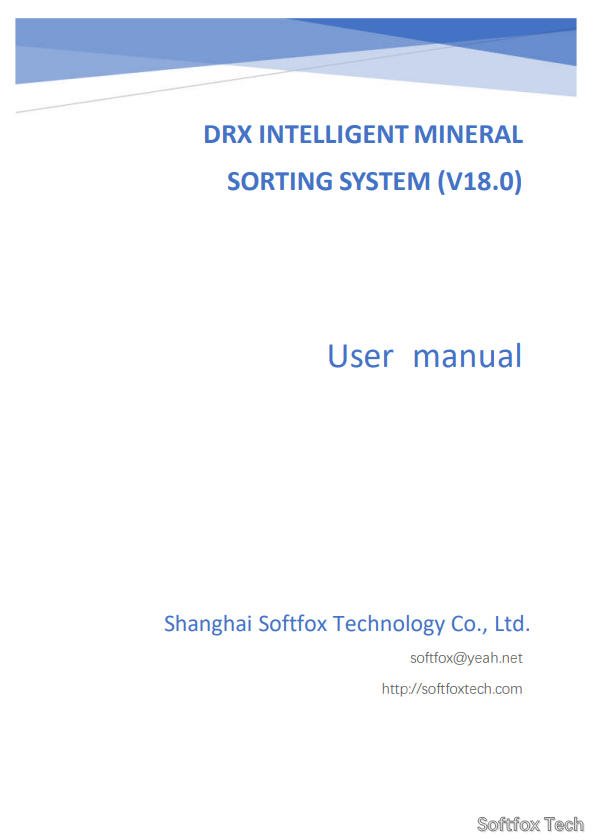

DRXIMSS Instructions for use

Software processing capability parameters

1. Sorting belt width 1000 - 2000mm
2. Sorting belt speed 2.5 - 3.1m/s
3. Mineral processing particle size 20 - 600mm
4. Distance from data acquisition line to nozzles 1223mm
5. After data acquisition, the total time required for calculation, recognition and control signal output is less than 30ms

DRV Intelligent Mineral Sorting System software, also known as color mineral sorting software, color sorting software. It obtains mineral industrial camera video images, applies mineral image feature data to identify minerals, and controls the nozzle to complete mineral sorting.

DRVIMSS Main Interface

Software processing capability parameters

1. Sorting belt width 1000 - 2000mm
2. Sorting belt speed 2.5 - 3.1m/s
3. Mineral processing particle size 20 - 600mm
4. Distance from data acquisition line to nozzles 1223mm
5. After data acquisition, the total time required for calculation, recognition and control signal output is less than 30ms

DRXV Intelligent Mineral Sorting System software, also known as X-ray + color mineral sorting software, dual-source sorting software, obtains mineral X-ray images and industrial camera video images, comprehensively applies data related to mineral density and mineral image feature data to identify minerals, and controls the nozzle to complete mineral sorting.

DRXVIMSS Main Interface

Software processing capability parameters

1. Sorting belt width 1000 - 2000mm
2. Sorting belt speed 2.5 - 3.1m/s
3. Mineral processing particle size 20 - 600mm
4. Distance from data acquisition line to nozzles 1223mm
5. After data acquisition, the total time required for calculation, recognition and control signal output is less than 30ms

DRXV Intelligent Mineral Sorting Parameters Setting Platform (DRXVIMSPSP) software helps users analyze and process mineral X-rays and industrial camera images, set parameters for identifying and sorting different minerals, and provide sorting parameter setting files for the DRX, DRV and DRXV intelligent mineral sorting system.

DRXVIMSPSP Main Interface

DRXIMSPSP Copyright registration certificate

DRXIMSPSP Instructions for use

Softfox X-ray Source Simulator (SFXRSS) can replace the real X-ray source and provide RS232 serial communication of COM port for the development and debugging of software using X-rays, so as to realize the setting of X-ray source parameters, control of X-ray source and acquisition of information on the working status of X-ray source, break through the various restrictions of directly connecting to X-ray source to develop and debug programs, and greatly improve the efficiency of software development using X-ray sources.

SFXRSS Main Interface

VJ Source Software Connect to SFXRSS Interface

SFXRSS Copyright registration certificate

SFXRSS Instructions for use

Softfox digital interface card (SFDIO) and data cable are used to obtain signals such as sorting belt conveyor, vibrating feeder, and sorting belt deviation, and to send out sorting equipment operating status signals and radiation source failure and belt deviation alarm signals.

SFDIO Connection instructions
